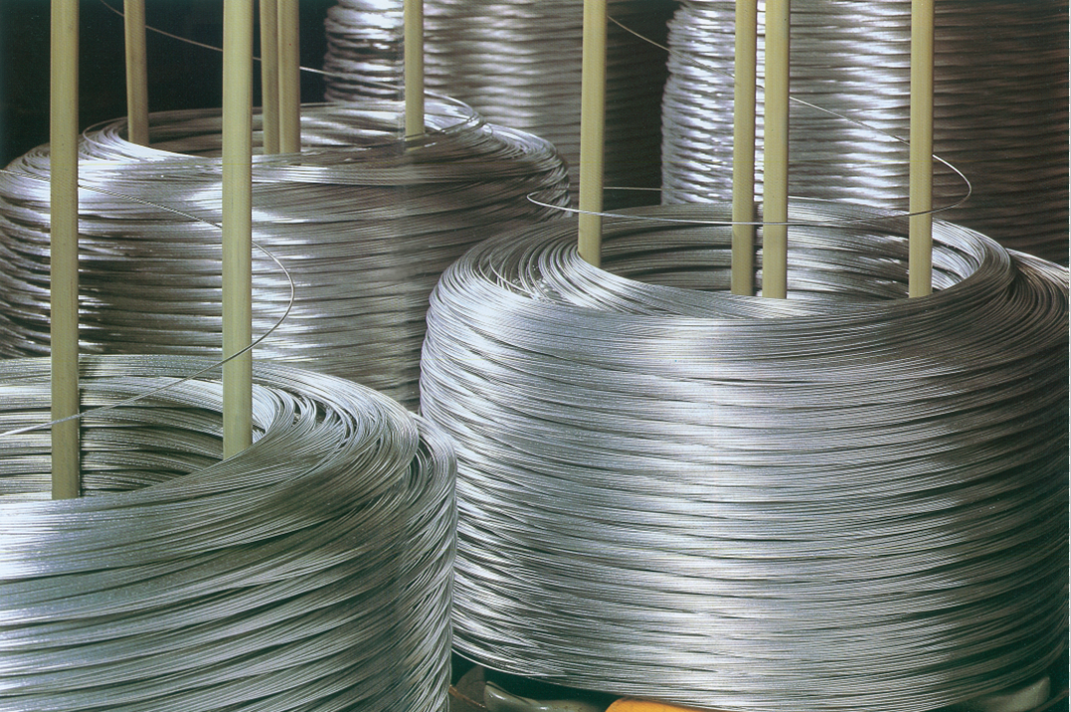

SUN AZ Wire

ⅠProduct name:

hot dipped Zinc -10% aluminum alloy steel wire (SUN AZ wire)

ⅡSpecification:

A. wire dia. (1.8-8.0mm)

B. coating weight (galvanized steel wire     ≤400g/㎡)

                (SUN AZ wire                 ≤600g/㎡)

SUN AZ wire to be used the full set of production line and coating technology from Japan, this line is the current highest product line in the world.

Presently our domestic popular material mostly is 5% Al-Zn ally steel wire or galvanized steel wire. But the people have also started using 10% Al-Zn alloy wire in Japan, South Korea, Taiwan and Europe. Especially Japan’s transport ministry (the ministry of communications and the ministry of land and resources) has designated this 10% AZ wire as the special material (using for river regulation, landslide protection). Kokkaido industrial experiment made one 1000hours salt spray test, the data proved this 10% AZ wire service life is 1.6times that 5% AZ wire, and more than 3.2times of galvanized steel wire. In other words, the coating weight 300g/m2 of 10% AZ wire is approximately equal to the life of coating weight 500g/m2 of 5% AZ alloy wire and coating weight about 900g/m2 of galvanized steel wire.

Salt water spray testing: All kinds of metal coating with salt spray data comparison in the below chart:

＊These data using the reduction of corrosion test results from Hokkaido industrial test (1990.5) and the test results from Nichia Steel.

The chart shows:

1,000Hr corrosion loss is

Zn・・・・・・・・・338ｇ/ｍ²

Zn-5%Al・・・・209ｇ/ｍ²

Zn-10%Al・・・105ｇ/ｍ²

Zn-5%Al corrosion resistance is 1.6times as large again as Zn.

Zn-10%Al corrosion resistance is 3.2 times as large again as Zn.
